AK64/MA63 Pulley Sheave, 1" Bore w/Keyseat

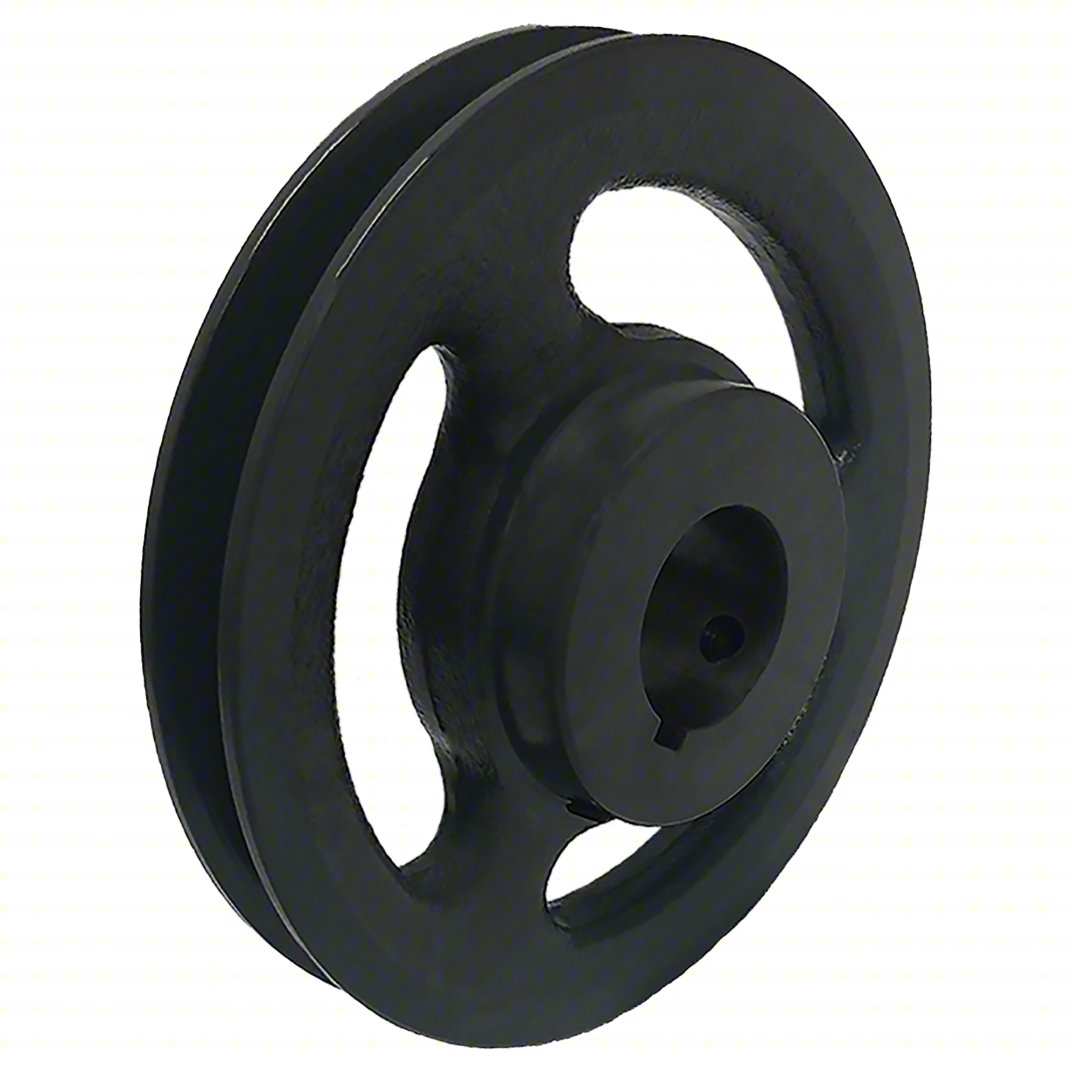

This AK64 Pulley 1" bore is directly interchangeable with other manufacturers, is 6.25" in diameter, is used with A style V-Belts, and is manufactured in accordance with ARPM Standard IP20 for safe operation. What separates this AK64 pulley from the others is that it is made using a high grade-35 cast iron, is phosphate coated, painted, and balanced at the factory. Using the grade 35 cast iron offers a higher tensile strength and is more wear resistant than the more commonly used grade 25. While the phosphate coated and then painted finish adds corrosion resistance to the AK64 pulley. Then, because this pulley is dynamically balanced it runs smoother which gives bearings and other components of the equipment a longer working life. Additionally, we stock a full line of premium A-Series V-Belts, shafting, key-stock, motors, gearboxes, bearings, and much more!

AK64 Pulley 1" Dimensions

• Pulley Size: AK64
• Outside Diameter (O.D.): 6.25"
• Pitch Diameter For 4L/A Belts (P.D.): 6.00"
• Pitch Diameter For 3L Belts (P.D.): 5.66"
• Pulley Type: 3
• Bore Size: 1"
• Key-Way Size: 1/4" X 1/8"
• Dimension (F): 3/4"
• Dimension (L): 1-5/32"
• Dimension (P): 15/32"
• Dimension (C): 1/16"
